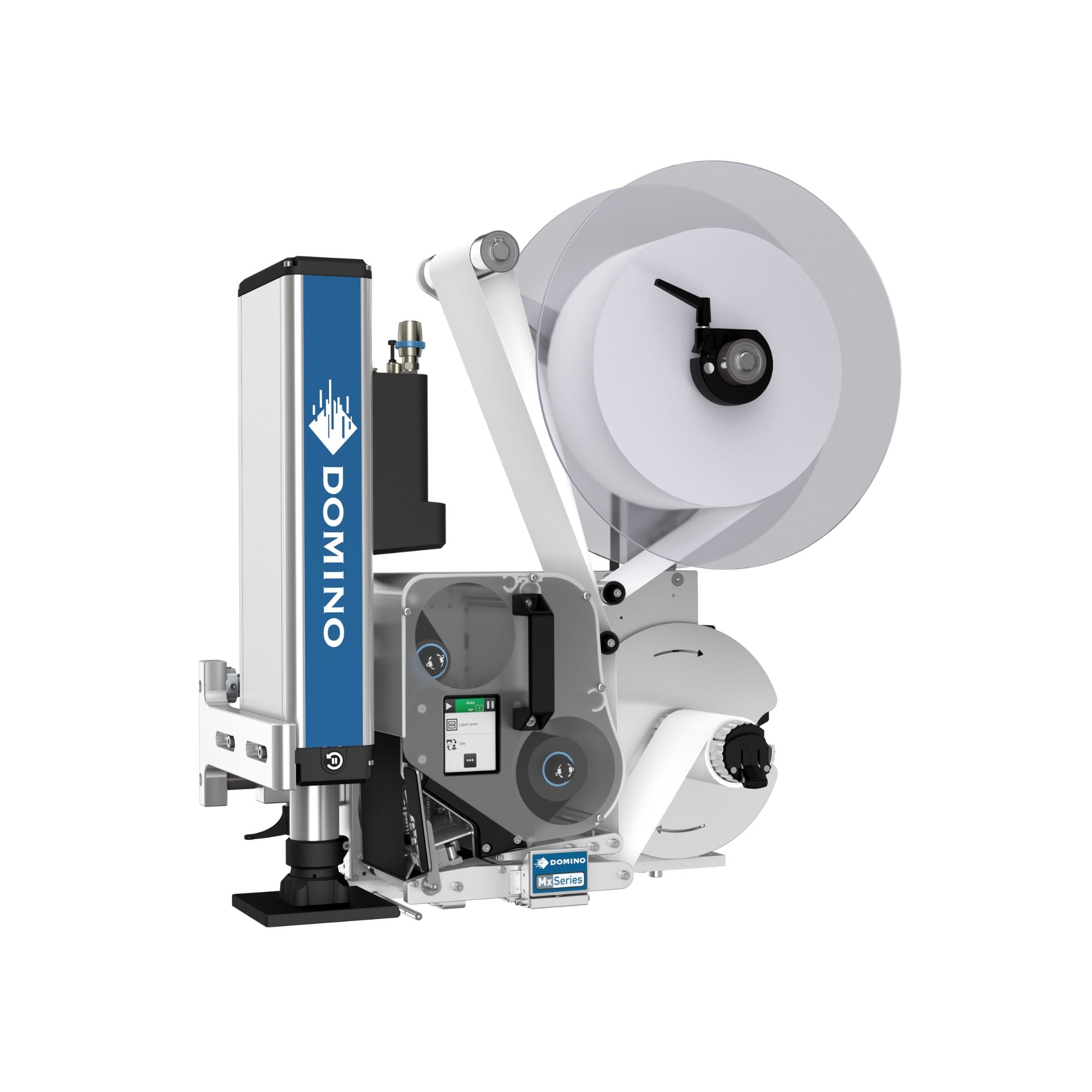

Mx350i-TLabelling on the top, side, or bottom of your products and packs |

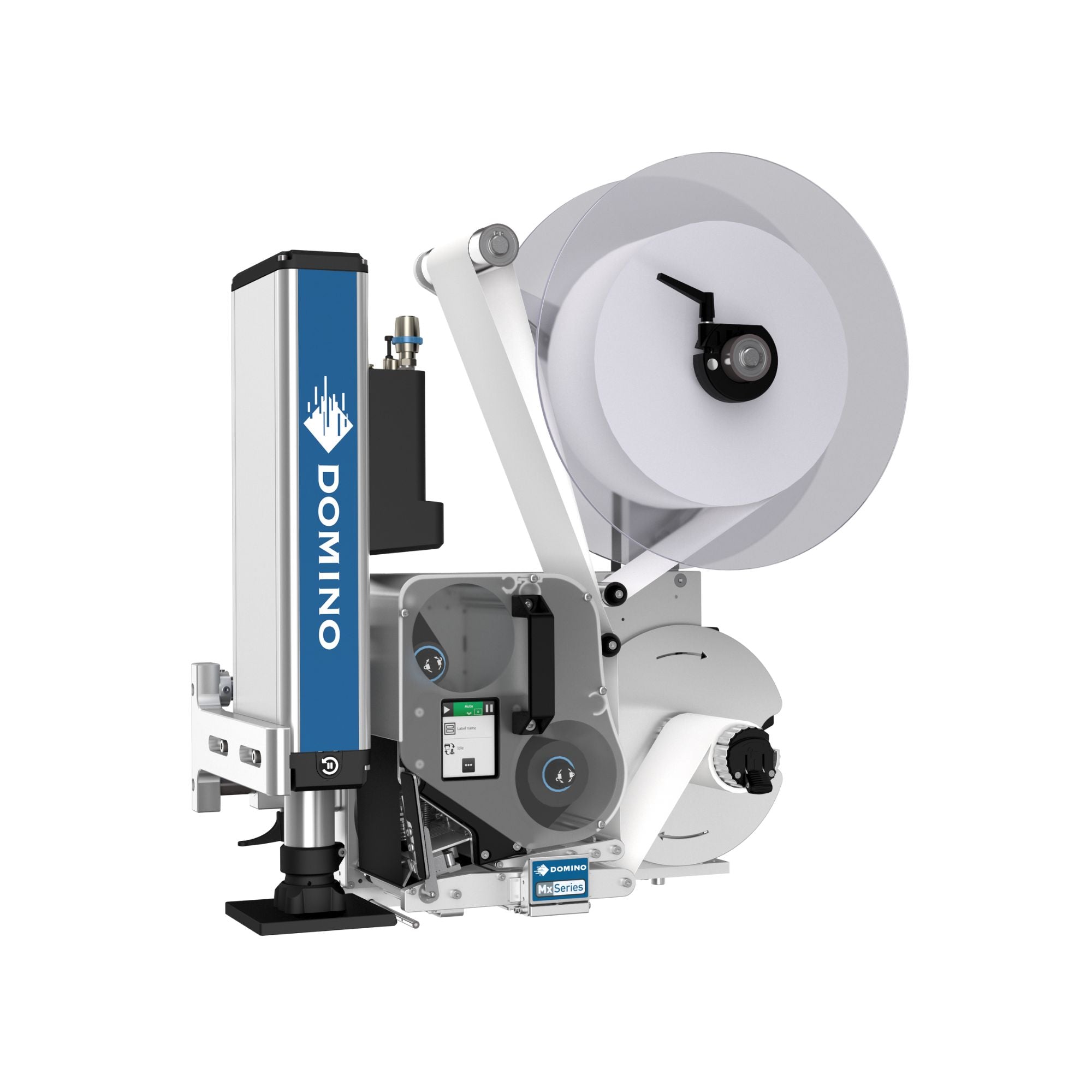

Mx350i-S & SPFront, rear, side or corner print and apply labelling |

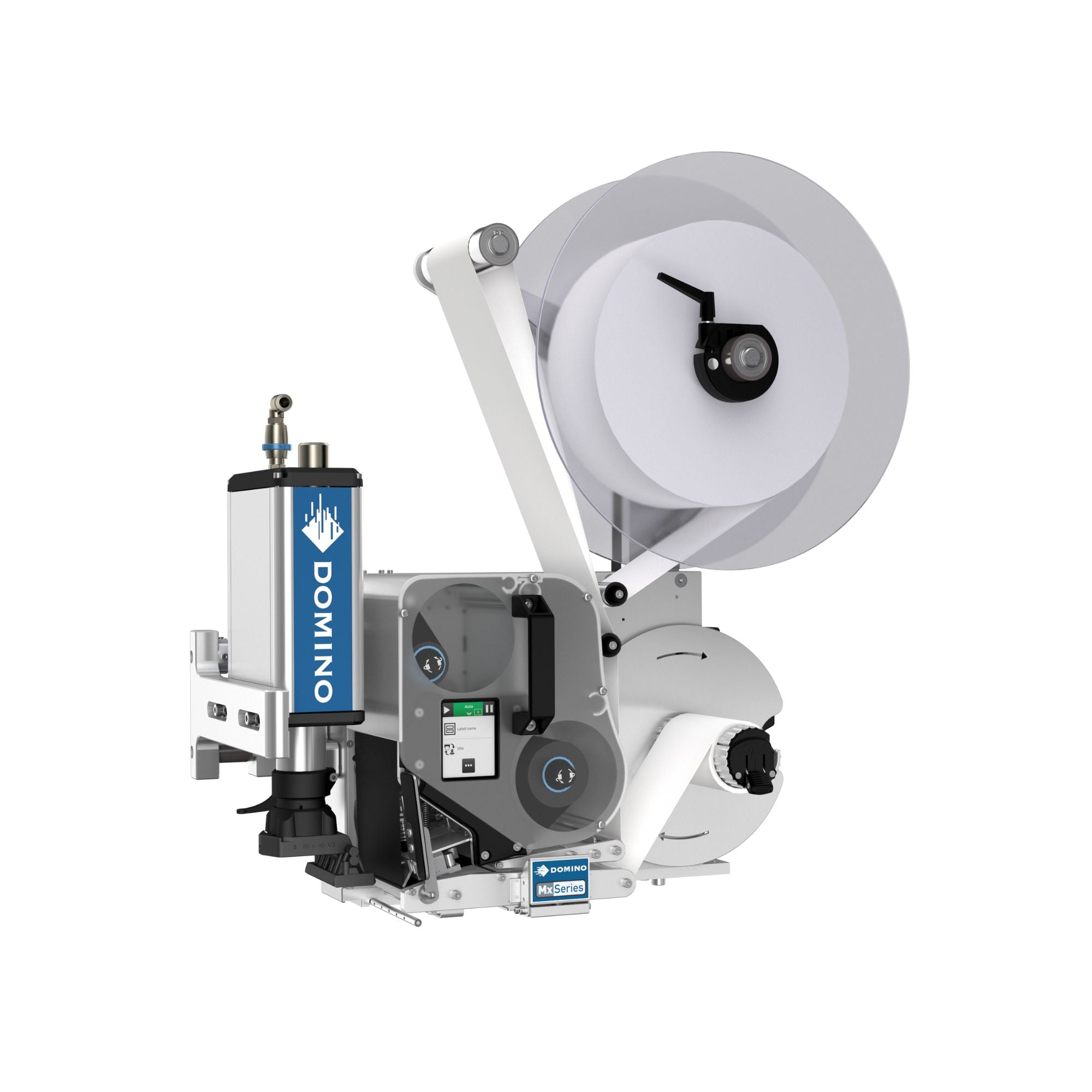

Mx350i-BRapid and contactless labelling |

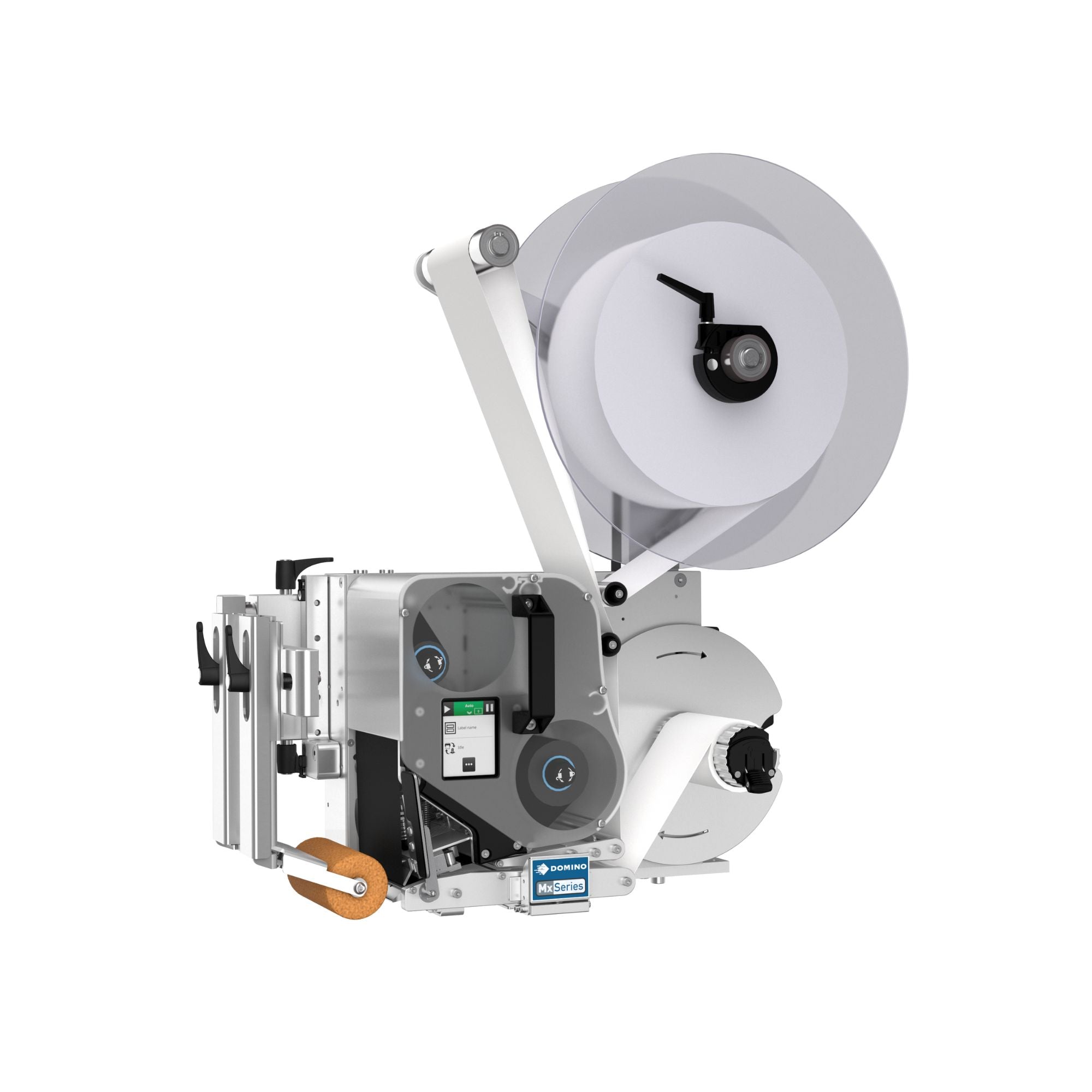

Mx350i-DWCompact, airless and cost-effective labelling |

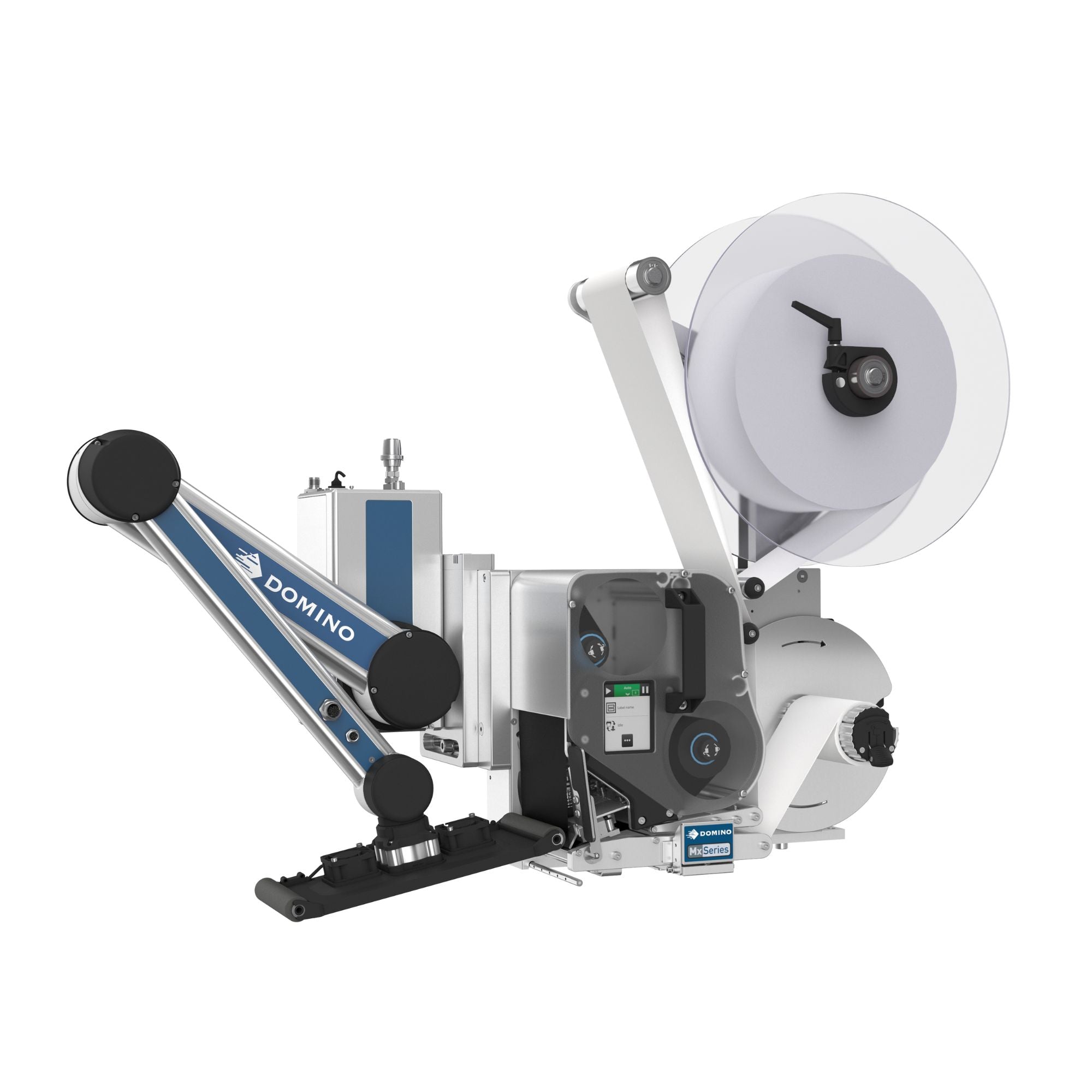

Mx351i-ECEfficient corner labelling, desinged for sustainability | |
Feature Comparison |
|
|
|
|
|
Product motion |
Moving or Stationary |
Moving |
Moving or Stationary |
Moving |
Stationary |
Label position |
Top or Bottom or Side |
Front or Side or Top or Rear, Front + Side or Front + Top or Front corner wrap |
Top or Side |
Top or Side |
Front or Side or Top or Rear, Front + Side or Front + Top or Front corner wrap |
Product contact |
Yes & No (blow on capability available) |
Yes |
No |
Yes |
Yes |
Easy-change pads |
Yes |
Yes |
N/A |
N/A |
No |
Recommended label width: 4-inch printer |
25-110mm |
25-110mm |
50-110mm |
25-110mm |
25-110mm |
Recommended label width: 6-inch printer |
25-150mm |
25-150mm |
50-150mm |
25-166mm |
N/A |
Distance to product |
Up to 560mm |
Up to 360mm |
10-100mm |
0mm |
200mm |
Max print speed: 4-inch printer |
400mm/s |
400mm/s |
400mm/s |
400mm/s |
400mm/s |
Max print speed: 6-inch printer |
250mm/s |
250mm/s |
250mm/s |
250mm/s |
N/A |
Communication |
4x Ethernet, TCP/IP, 2x USB-A, 1x USB-B |
4x Ethernet, TCP/IP, 2x USB-A, 1x USB-B |
4x Ethernet, TCP/IP, 2x USB-A, 1x USB-B |
4x Ethernet, TCP/IP, 2x USB-A, 1x USB-B |
4x Ethernet, TCP/IP, 2x USB-A, 1x USB-B |
I/Os (configurable) |
12 inputs and 12 outputs |
12 inputs and 12 outputs |
12 inputs and 12 outputs |
12 inputs and 12 outputs |
12 inputs and 12 outputs |
Downloads | |||||
Learn more |
Learn more |
Learn more |
Learn more |
Learn more |
Mx-Series Case Labellers: Reliable, flexible, and robust
Domino's Mx-Series print-and-apply case labellers deliver reliable automation, printing and applying of labels accurately and consistently, reducing the risk of human errors. This is crucial in industries where precise labelling of dynamic or variable data is essential for product traceability, compliance, and quality control. They are engineered to:
- Enable simple installation, operation, and maintenance
- Perform reliably in tough and varied environments
- Integrate seamlessly into existing production lines
- Be configured for a wide range of applications
- Apply a label to the front, top, or over the corner of products or packages.
Plus, with Domino's R-Series vision inspection and near real-time remote monitoring and diagnostics via Domino cloud, you can be confident that only perfectly coded products enter your supply chain.
insignia's technical support team can manage everything from installation and training, maintenance, and ongoing support. Contact us today to speak with an expert.
Other packaging labelling models
For efficient and safe labelling on your pallets, the Domino Pallet Labellers are flexible, user-friendly and robust, and can be configured for a wide range of applications.
