Mx350i-eP
M230i-P
Feature Comparison

Highest recommended cycle speed

10 labels per minute

5 labels per minute

Applicator

Flexible 3-joint electric arm

Pneumatic driven cylinder

Guarding

No need - Safe by design

Cabinet included

Mounting

Floor stand optional

Aluminum or Stainless steel cabinet required

Label positions

Front, Side and Rear

Front and Side (Rear is optional)

Distance to product

 Up to 600mm

Up to 450mm

Camera for 1D/2D code scanning

Integrated in pad

Optional

Energy Consumption (two cycles)

191 W

396 W

Air Consumption (two cycles)

16.2 litres

25.8 litres

Communication

4x Ethernet, TCP/IP, 2x USB-A, 1x USB-B

Ethernet, RS232, Ethernet TCP/IP

I/Os (configurable)

12 inputs and 12 outputs

10 inputs and 10 outputs

Printer model

Mx-Series printer

M-Series printer

Print technology

Thermal transfer / Direct thermal

Thermal transfer / Direct thermal

Printer orientation

Left hand or Right hand

Left hand or Right hand

Print resolution

12 dots/mm (300dpi)

12 dots/mm (300dpi)

Print width

6-inch (162mm)

6-inch (162mm)

Recommended label width

25-150mm

60-150 mm

Recommended label length

15-210mm

40-210 mm

Floor space dimensions

625x739mm
(730x770mm if floor stand is used)

1160x880mm

Domino Cloud capability

Yes

No

Domino Automation

Yes

No

Downloads

Mx350i-eP Brochure

M230i-P Brochure

Learn more
Learn more

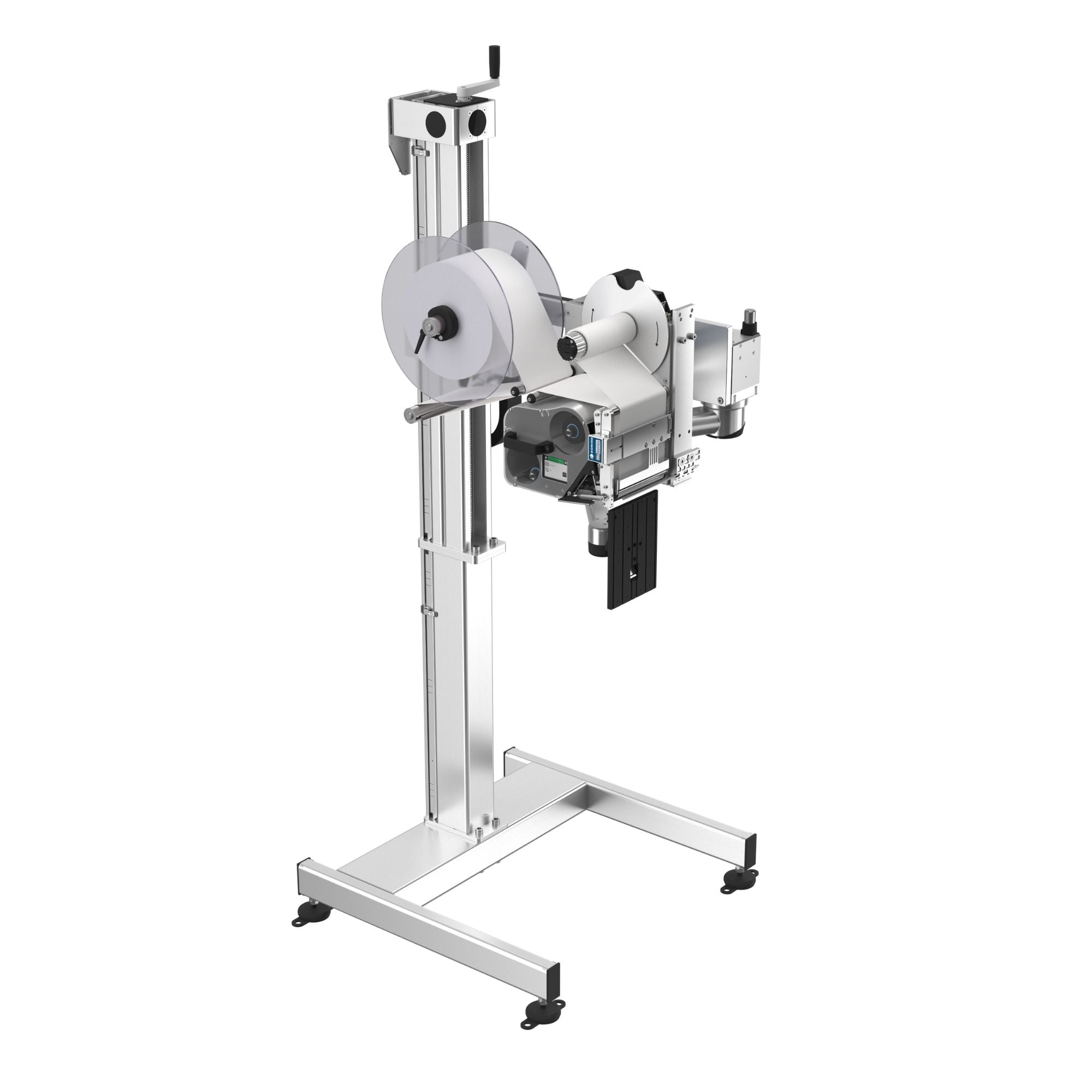

Mx350i-eP Paller Labeller

A new beginning at the end of the line

  • Safe by design - No guarding required
  • Electric three-jointed arm with collision detection, operating in 350°
  • Multiple pallet labelling scenarios for labelling up to 3 sides of a pallet
  • Half and part pallet functionality
  • Camera for 1D/2D code scanning integrated in pad
  • Compact footprint
  • Advanced connectivity
  • Safe and easy operator access - printer front facing away from the conveyor
  • Seamlessly integrates into your production while supporting your sustainability goals.

Plus insignia's technical support team can take care of everything from installation to ongoing support and maintenance.

Enhance your production with the Mx350i-eP Pallet Labeller. Contact us for more information!

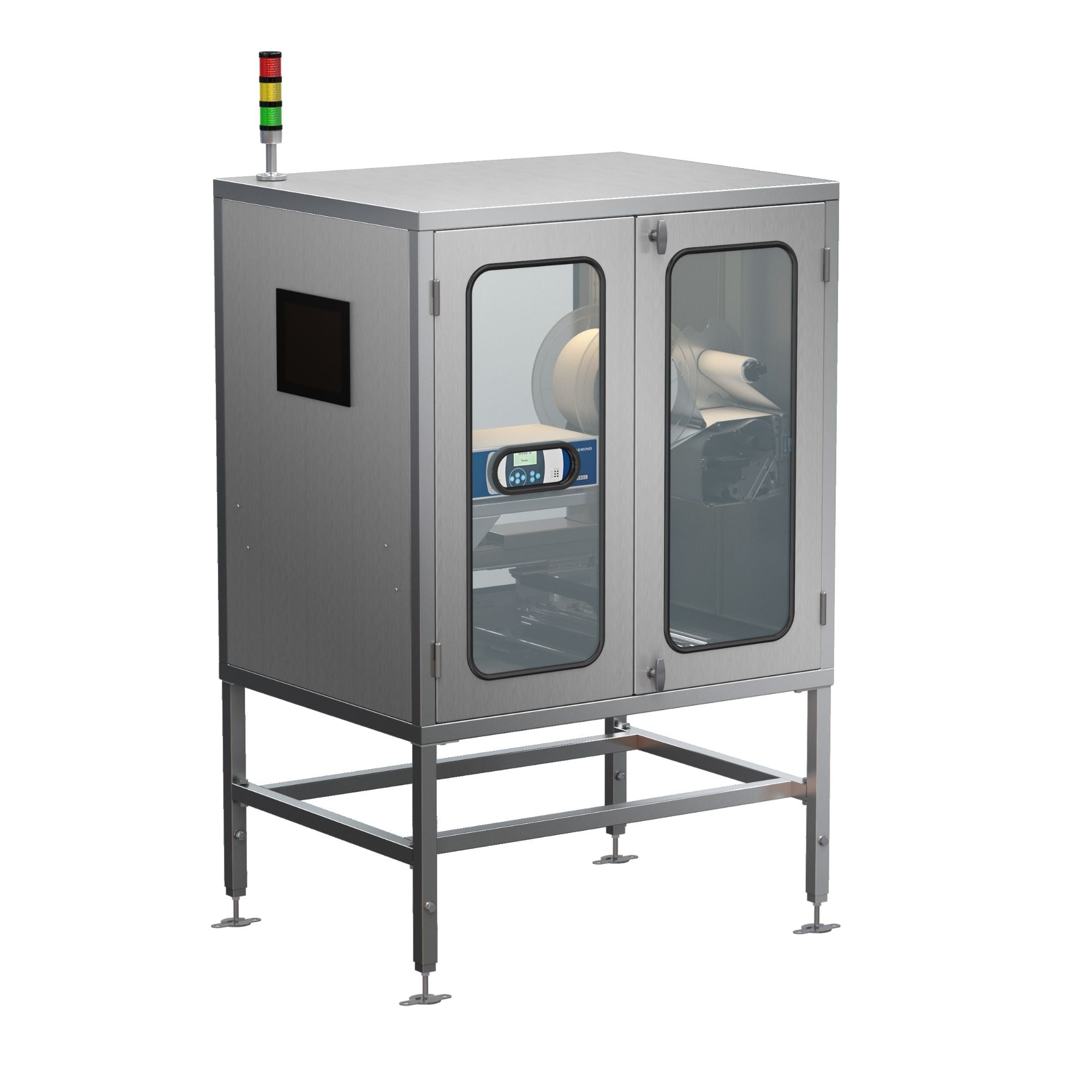

M230i-P150 Pallet Labeller

Robust, automated solution for harsh environments

  • Labelling 1 to 3 sides of the pallet
  • Cabinets for demanding environments: Aluminium or Stainless steel
  • Cabinet options for Cooling and Heating
  • Cabinet mounted sensors to prevent operator access to moving parts
  • Part pallet functionality
  • Robust construction
  • Modular design, left- and right handed models available
  • RS232 & Ethernet interfaces and multiple configurable I/O’s to make integration easy.

Plus insignia's technical support team can take care of everything from installation to ongoing support and maintenance.

Automates your final production step with the M230i-P150 Pallet Labeller. Contact us for more information!

Domino Mx-Series Case Labellers

Other packaging labelling models

For an automated system that prints and applies labels accurately and consistently on cartons and products and easily integrate into your production line, Domino's Mx-Series Case Labellers are reliable, flexible, robust and can be configured for a wide range of applications.

×
