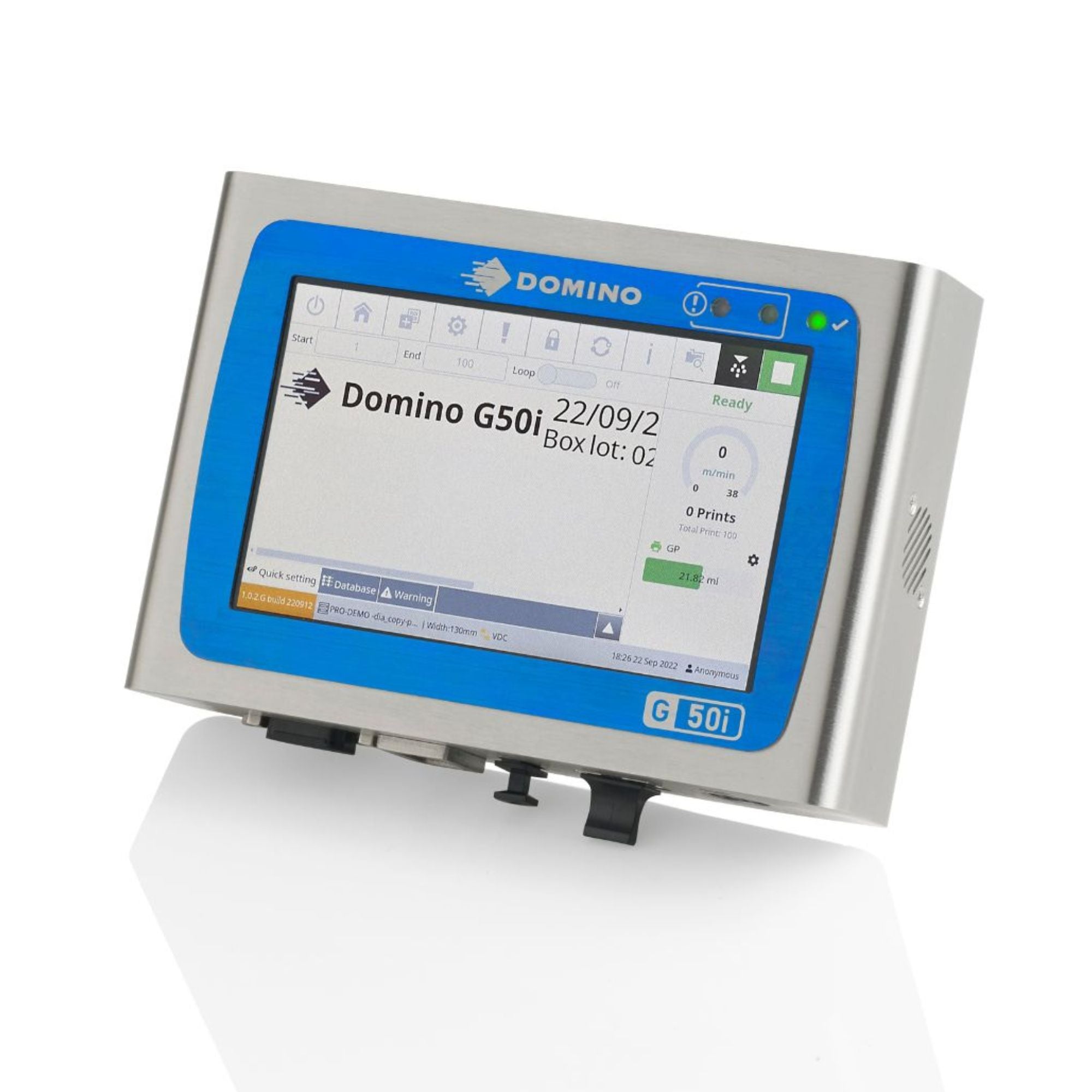

Gx50iA self-installed, high-resolution TIJ printer for your primary packaging and outer case coding needs |

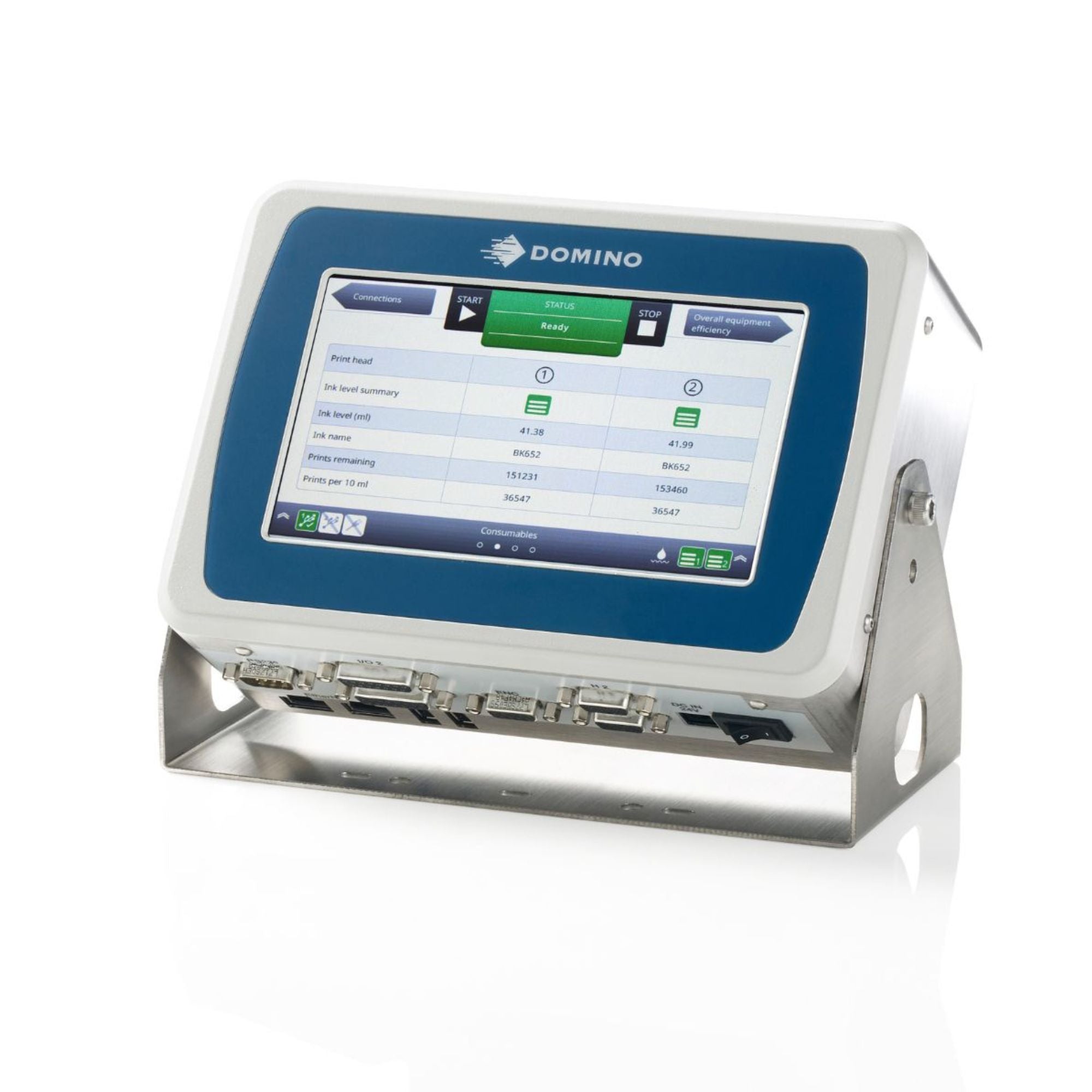

Gx150iThe all-rounder for thermal inkjet coding at speed in graphic quality |

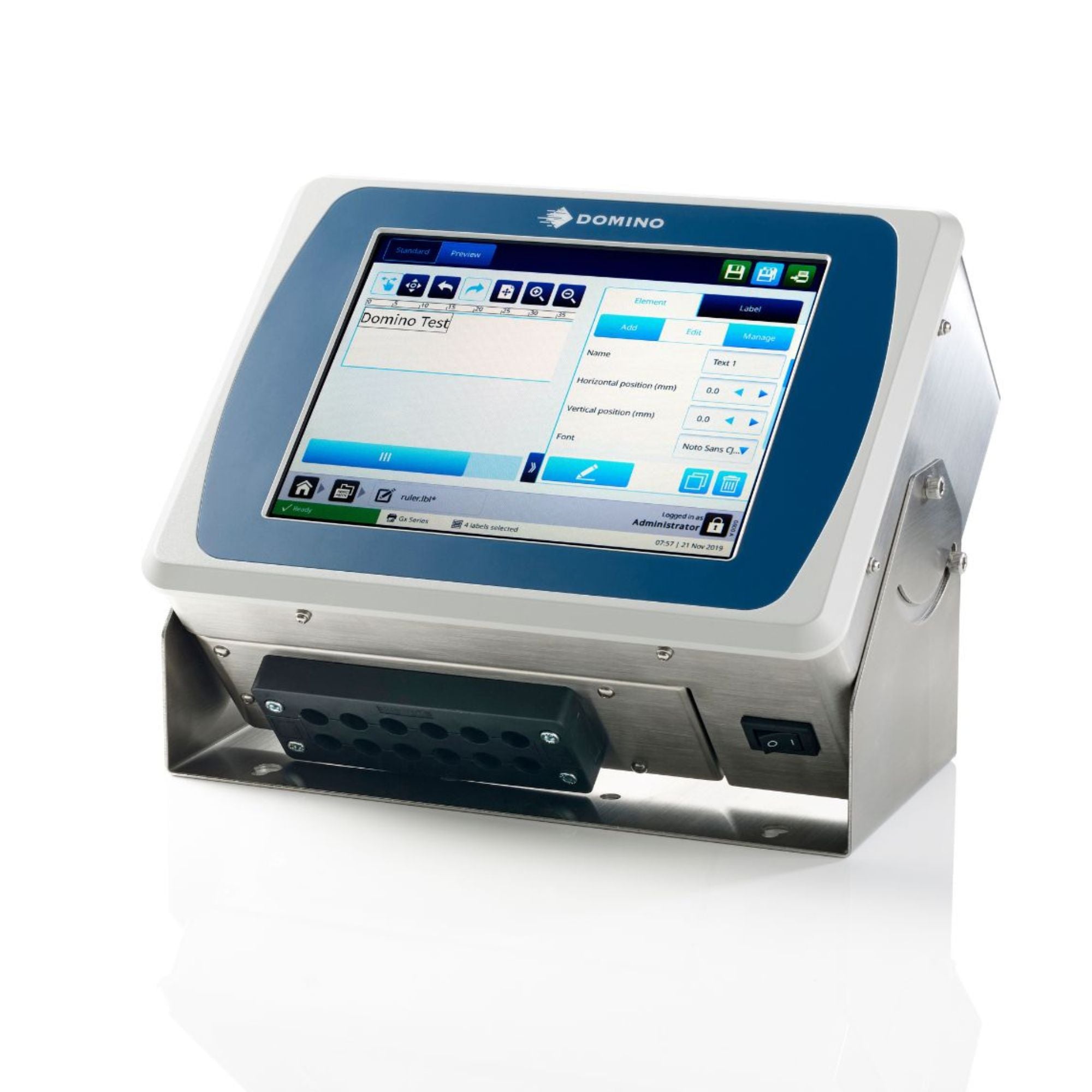

Gx350iThe ideal choice for item level serialisation and fast data transfer, controlling up to 4 print heads |

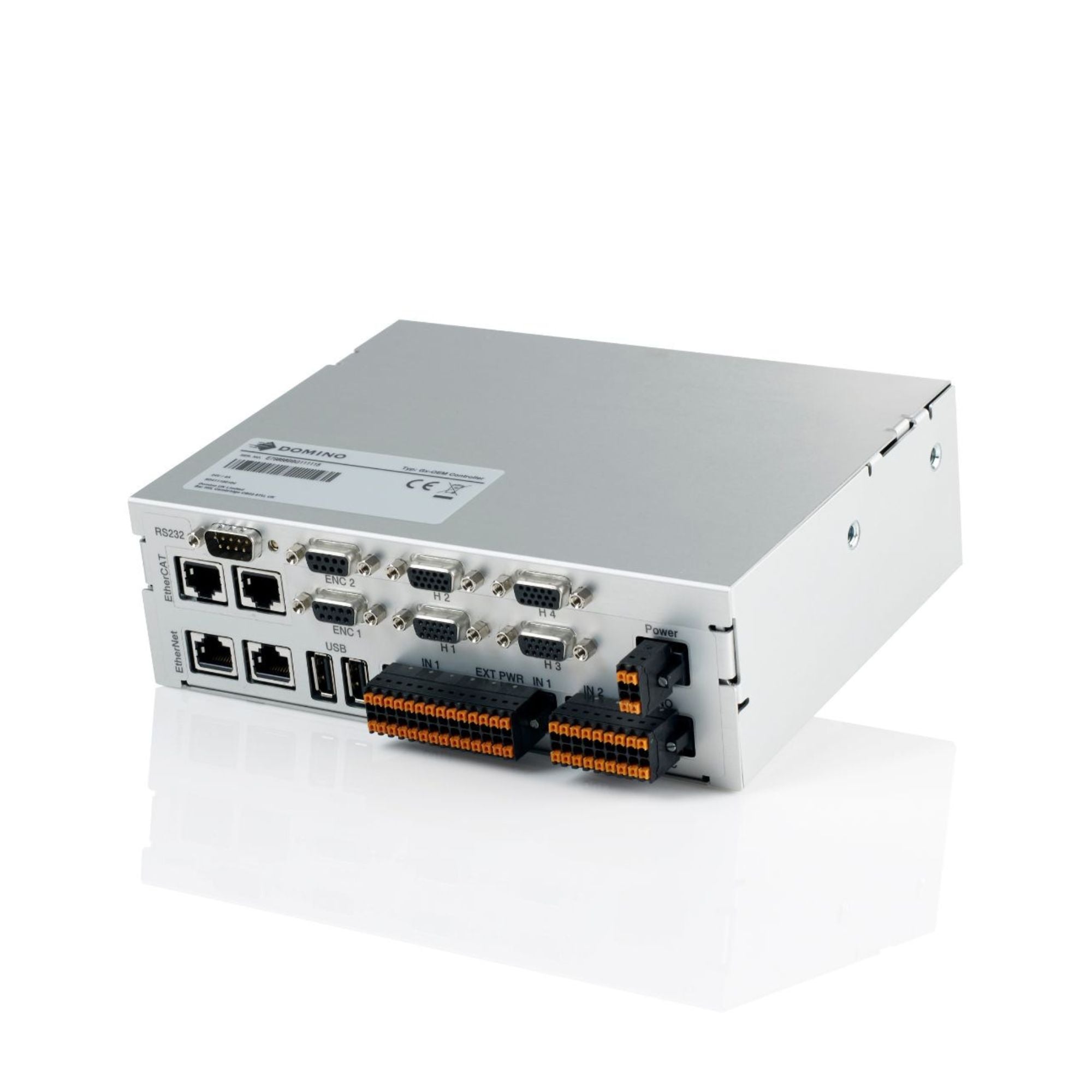

Gx-OEMThe specialist for complete integration into production machinery | |
Feature Comparison |
|
|
|
|
Text, barcodes and graphic coding |
Yes |
Yes |
Yes |
Yes |
High-speed serialisation |
No |
Yes |
Yes |
Yes |
Max print heights |
GP: 12.7mm |
12.7mm (one printhead), up to 52.2mm (two printheads stitched)* |
12.7mm (one printhead), up to 104.3mm (four printheads stitched)* |
12.7mm (one printhead), up to 104.3mm (four printheads stitched)* |
Line speed |
GP: 300x300 DPI up to 76m/mm |
60 DPI up to 300m/min (Standard, compact and EXT). 60 DPI up to 228m/min (OPT) |
60 DPI up to 300m/min (Standard, compact and EXT). 60 DPI up to 228m/min (OPT) |
60 DPI up to 300m/min (Standard, compact and EXT). 60 DPI up to 228m/min (OPT) |
Printheads per controller |
1 remote printhead |
up to 2 printheads for increased message height or individual printing on 2 different print positions |
up to 4 printheads for increased message height or individual printing on up to 4 different print positions |
up to 4 printheads for increased message height or individual printing on up to 4 different print positions |
Controller dimensions |
155mm x 11.6mm |
75mm x 224mm x 156.5mm Weight: 1.55kg |
123.9mm x 322.4mm x 250.7mm Weight: 6.4kg |
64mm x 200mm x159.2mm Weight: 0.692kg |
Printhead types |
GP, EXT |
Standard, compact, EXT and OPT |
Standard, compact, EXT and OPT |
Standard, compact, EXT and OPT |
User interface |
5" colour touch screen |
QuickStep via 7" touch screen or customer HMI |
QuickStep via 10" touch screen or customer HMI |
QuickStep via customer HMI |
Domino Cloud for remote monitoring & diagnostics |
No |
Yes |
Yes |
Yes |
Inks for porous and non-porous materials |
Yes |
Yes |
Yes |
Yes |
Communications |
TCP/IP (Rj45) and COM (RS485) for database, barcode scanners, checkweighers |
Ethernet / Dynamark protocol, EDC (serial, TCP, USB) |
Ethernet / Dynamark protocol, EDC (serial, TCP, USB) optional: fieldbus protocols |
Ethernet / Dynamark protocol, EDC (serial, TCP, USB) optional: fieldbus protocols |
Continuous operation |
Not available |
Bulk Ink system for long-run operation, AutoSwap for uninterrupted production |
Bulk Ink system for long-run operation, AutoSwap for uninterrupted production |
Bulk Ink system for long-run operation, AutoSwap for uninterrupted production |
Downloads | ||||
Learn more |
Learn more |
Learn more |
Learn more |
Gx-Series: High-resolution, high-speed printing for challenging materials
Domino’s Gx-Series of thermal inkjet (TIJ) printers are engineered to:
- Enable simple installation, operation, and maintenance
- Print on a wide range of substrates, including paper, card, plastic, and metal
- Produce batch and date coding, as well as complex code formats
- Support FMCG coding requirements with an ink range suitable for all packaging levels
- Enable pharmaceutical coding in compliance with GS1 standards
- Deliver durable, rub and scratch-resistant codes, logos, and graphics on electronic components, metal, aluminium or PCBs.
Plus, with Domino's R-Series vision inspection and near real-time remote monitoring and diagnostics via Domino cloud, you can be confident that only perfectly coded products enter the supply chain.
insignia's technical support team can manage everything from installation and training, maintenance, and ongoing support. Contact us today to speak with an expert.
