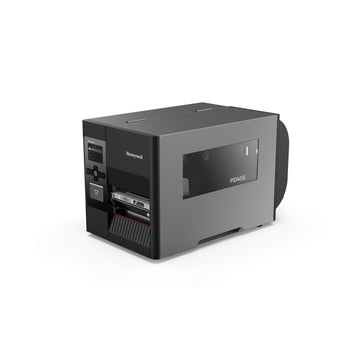

Honeywell PD45S 4-inch 300dpi TT Industrial Label Printer LCD USB/ETH/SER Fixed Hanger

Download Datasheet
Download Configuration Guide

The PD45S is a rugged all-metal industrial printer suited for manufacturing, retail, transportation & logistics, health care, and government applications. A large glass window design allows users to easily monitor the status of the printer and its consumables. A side opening makes it handy for ribbon and paper loading, and where spent liner can be easily removed. Comes standard as a Smart Printer and supports multiple languages.

• 4-inch 300 dpi Thermal Transfer and Thermal Direct label printer
• 2.6-inch LCD with keypad user interface
• Includes a Fixed Hanger to allow for smaller cores to be used
• Tough, compact and sleek with an all-metal frame structure
• Print width up to 105.7 mm
• Print length up to 2.2 m
• Print speed up to 200 mm per second
• Label width 20 mm to 114 mm
• USB + USB Host, Serial and Ethernet connectivity. Optional Wi-Fi and parallel port connectivity and more
• Prints on non-continuous label paper, black label paper, tag paper, guide hole paper, notch paper or continuous label paper
• Advanced industrial print head ensures high printing quality and durability
• Patented dual-sensor positional technology ensures a minimum height of 5mm and the position accuracy of +/-0.5 mm with the dynamic positioning function
• Easy to install, operate, clean, and replace parts
• Smart printing allows users to configure and print without the need for a host computer
• Range accessories available including a peeling and rewind assembly, and cutter
• Power cord sold separately.

Support, maintenance and pricing

• Support from insignia’s experienced Technical Services team
• Optional Honeywell Edge Maintenance Plans with choice of accidental damage, printhead replacement and other inclusions for added peace of mind
• Project pricing may be available on bulk orders.
