Vx150iCoding on flexible packaging has never been easier |
Ax350iHigh-volume variable data printing on flexible packaging | |
Feature Comparison |
|
|
Printhead width |
32mm and 53mm |
53mm |
Code print quality |
300dpi |
300dpi |
Maximum print speed |
750mm/s |
1200mm/s |
Maximum repeat rate |
6 prints/s |
8.3 prints/s |
Maximum ribbon length (AR ribbon) |
770m |
1200m |
Supported code formats |
EAN, GS1, UCC, QR code, Data Matrix, Han Xin, ITF, Code128, text, graphics, 1D, 2D codes etc. |
Code128, Data Matrix, GS1-128, GS1(DB) Expanded Stacked, QR-Code, UPCA |
Compressed air required |
No |
No |
Cassette ribbon loading |
Yes |
Yes |
QuickStep - simple user interface |
Yes |
Yes |
PC label design software included |
Yes |
Yes |
Web browser capability for complete host machine integration |
Yes |
Yes |
Simple bracket conversion kits |
Yes |
Yes |
Performance packs (optional) |
Pharma serialisation pack, Advanced security pack, Promotional coding pack |
Enhanced pack |
Optional interface |
TouchPad; 7-inch touchscreen |
TouchPanel 6; 10.1-inch touchscreen |
Downloads | ||
Learn more |
Learn more |

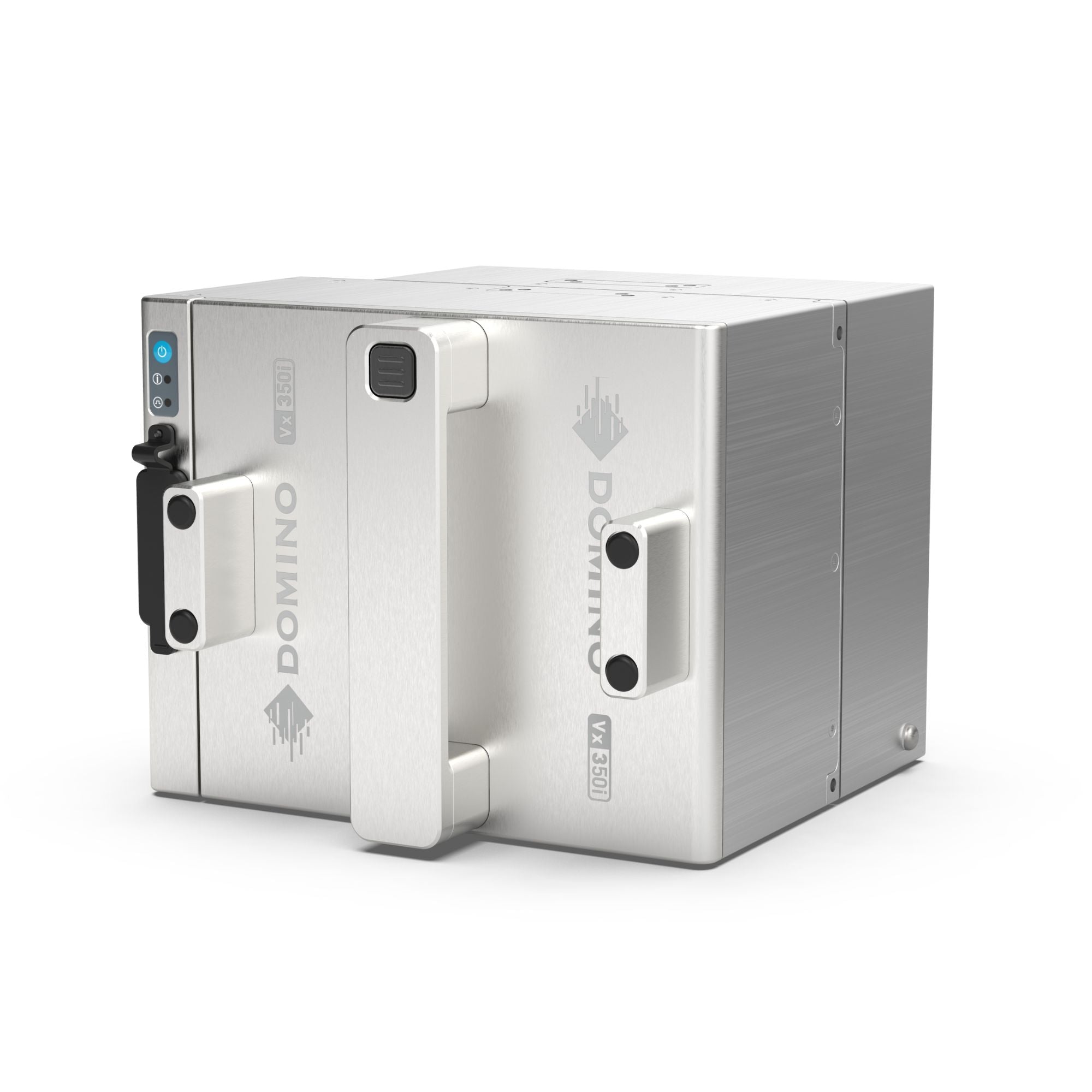

Vx-Series: Coding on flexible packaging
Domino’s Vx-Series thermal transfer overprinters (TTO) are engineered to:
- Print real-time and variable data, machine-readable codes, text, graphics and logos directly onto your flexible packaging films and labels
- Integrate seamlessly into existing packaging and processing equipment
- Deliver crisp, high-quality codes at high speeds
- Minimise downtime and maximise throughput through features such as cassette-based ribbon loading; long ribbon role capacity; rapid print-width changeover (Vx150i); combined intermittent and continuous mode in a single system; no compressed air requirements; and a compact footprint
- Reduce waste, downtime, and cost with 4 ribbon-saving modes.
Plus, with Domino's R-Series vision inspection and near real-time remote monitoring and diagnostics via Domino cloud, you can be confident that only perfectly coded products enter the supply chain.
insignia's technical support team can manage everything from installation and training, maintenance, and ongoing support. Contact us today to speak with an expert.
