Cx150i

High-resolution UV-cure inkjet printer for printing large-sized codes on non-porous surfaces

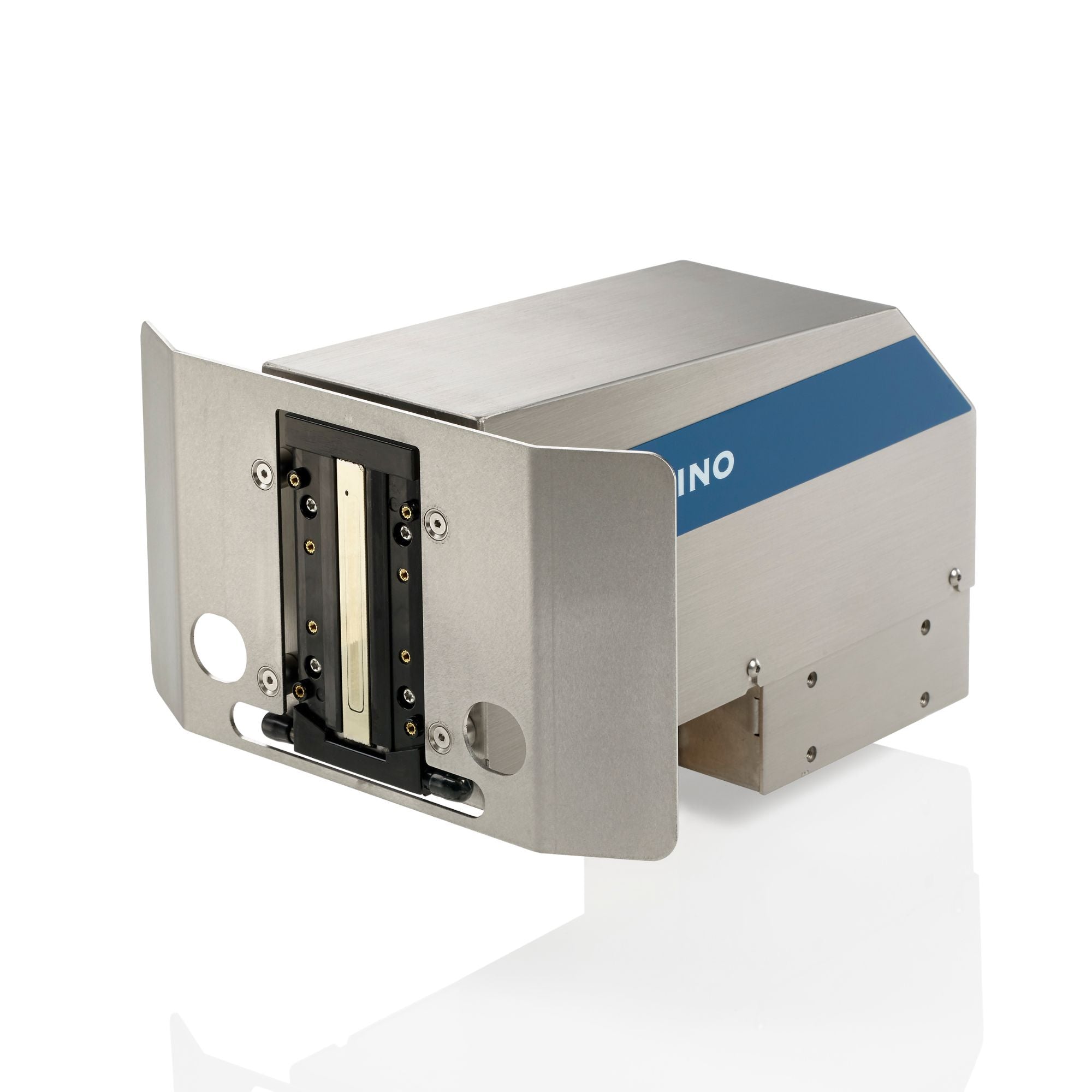

Cx350i

Large character inkjet printer for printing on boxes and construction material

Feature Comparison

High-resolution, non-contact, piezo inkjet printing

Yes

Yes

Text, barcodes and graphics coding

Yes

Yes

Service-free

Yes

Yes

Available ink choices

Black, UV-cure ink for varnished boxes and general-purpose, non-porous & porous substrates. Food packaging compliant ink available.

Black, blue, red and green vegetable oil-based inks for porous substrates. Food packaging compliant.

Print height per printhead

32.5mm or 65mm

65mm

Max. number of printheads

1

4

Max. print height (with stitching)

32.5mm or 65mm

260mm

Print resolution

up to 600dpi

up to 300dpi

Distance to bottom nozzle

Cx1-PH 32 A: 23.3mm
Cx1-PH 65 A: 32.7mm

36.5mm

Substrate

Non-porous and porous substrates

Standard: Porous, uncoated boxes, corrugate and paper
Industrial: Porous building materials, including plasterboard/drywall

User interface

7" or 10" touchscreen interface

10" touchscreen interface

Software

QuickStep 3

QuickStep 3

Dimensions (Inkbase)

276mm (H) x 167mm (W) x 231mm (D)

490mm (H) x 330mm (W) x 234mm (D)

Dimensions (Printhead)

Cx1-PH 32 A: 136.4mm (H) x 61mm (W) x 212.6mm (D)
Cx1-PH 65 A: 136.4mm (H) x 61mm (W) x 223.8mm (D)

190mm (H) x 113mm (W) x 312mm (D) (standard head)

Downloads

Cx150i Brochure

Cx350i Brochure

Learn more
Learn more
Domino Outer Case Coders

Other large character printers

Designed to deliver high productivity and consistent quality, Domino's outer case coders offer reliable, robust, and sturdy solutions for large character printing in challenging manufacturing environments.

High resolution inkjet printing with Domino's Cx-Series

Powered by the latest Piezo Inkjet (PIJ) technology, the Cx-Series range supports compliance to GS1 standards, and the move to large, more complex 2D machine-readable code formats. These include QR codes powered by GS1, supporting coding needs for those moving towards smarter packaging.

PIJ is a drop on demand (DOD) technology, meaning that no ink or other materials are consumed by the printer when it’s not printing. Coupled with a unique combination of settings relating to ink usage, it is designed to support your business goals relating to running costs, productivity and sustainability. Printing with the Domino Cx-Series can help you tackle some of your environmental challenges through:

  • Non-toxic, non-hazardous vegetable oil-based inks
  • UV-curable inks, with low organic compound (VOC) content
  • Flexible ink usage settings
  • No label waste
  • No factory air is needed.
