Coding, Marking & Automated Labelling

Domino Gx-Series Thermal Inkjet Printing

Increase uptime with Domino's new range of cloud-connected high resolution thermal inkjet printers that are easier than ever to use to create clean and clear codes.

Talk to Us

Thermal Inkjet Printing

Versatile hi-res high-speed thermal inkjet for clean and clear coding

Meet the Gx-Series - Domino's newest thermal inkjet range offering full compatibility with Industry 4.0 standards using the Domino Cloud. Domino Cloud allows remote capability, providing the data and tools to ensure printing is a contributor to better packaging and processing systems management. Designed for high-resolution printing at high line speeds with complete reliability, Domino's Gx-Series is versatile, easy to integrate and easy to operate - the perfect fit for many printing applications and substrates.

  • Remote monitoring and diagnostics through connection to Domino Cloud (Gx-Series only)
  • Wide range of Domino inks to suit all types of packaging - from flexible films to porous shelf-ready packaging and shipping cartons

VIEW THE RANGE

Domino Gx-Series Thermal Inkjet for for Date, Batch, and Traceability Coding



G20i

Thermal inkjet printer providing a simple, single-sided carton coding solution

Gx150i

The all-rounder for thermal inkjet coding
at speed in graphic quality

Gx350i

The ideal choice for item-level serialisation and fast data transfer, controlling up to 4 printheads

Gx-OEM

The specialist for complete integration into production machinery

FEATURE COMPARISON

Domino G20i

Domino Gx150i

Domino Gx350i

Domino Gx-OEM

Text, Barcodes and Graphic Coding Yes Yes Yes Yes
High-Speed Serialisation No Yes Yes Yes
Max Print Height 12.7mm 25.4mm 50.8mm 50.8mm
Line Speed For constant line speed only,
max 18m/min
For varying and constant line speeds, max 300m/min For varying and constant line speeds, max 300m/min For varying and constant line speeds, max 300m/min
Print Heads Per Controller 1 embedded print head Up to 2 print heads for increased message height or individual printing on 2 different print positions Up to 4 print heads for increased message height or individual printing on up to 4 different print positions Up to 4 print heads for increased message height or individual printing on up to 4 different print positions
Controller Dimensions 107.5mm x 74.5mm x 83mm Weight: 450g 75mm x 224mm x 156.5mm Weight: 1.55kg 123.9mm x 322.4mm x 250.7mm Weight: 6.4kg 64mm x 200mm x159.2mm Weight: 0.692kg
Print Head Dimensions Embedded Height 152mm x Width 50.9mm x Depth: 8.5mm Weight: 0.22kg Height 152mm x Width 50.9mm x Depth: 8.5mm Weight: 0.22kg Height 152mm x Width 50.9mm x Depth: 8.5mm Weight: 0.22kg
User Interface 2,8” colour display, data entry with (1) Android based application (2) keyboard or (3) PC application QuickStep via 7" touch screen or customer HMI QuickStep via 10" touch screen or customer HMI QuickStep via customer HMI
Domino Cloud for Remote Monitoring & Diagnostics No Yes Yes Yes
Inks for Porous and Non-Porous Materials Yes Yes Yes Yes
Communication Bluetooth, USB Ethernet / Dynamark protocol, EDC (serial, TCP, USB) Ethernet / Dynamark protocol, EDC (serial, TCP, USB) optional: EtherCAT protocol Ethernet / Dynamark protocol, EDC (serial, TCP, USB) optional: EtherCAT protocol



G20i

Thermal inkjet printer providing a simple, single-sided carton coding solution

Text, Barcodes and Graphic Coding Yes
High-Speed Serialisation No
Max Print Height 12.7mm
Line Speed For constant line speed only, max 180m/min
Print Heads Per Controller 1 embedded print head
Controller Dimensions 107.5mm x 74.5mm x 83mm Weight: 450g
Print Head Dimensions Embedded
User Interface 2,8” colour display, data entry with (1) Android based application (2) keyboard or (3) PC application
Domino Cloud for Remote Monitoring & Diagnostics No
Inks for Porous and Non-Porous Materials Yes
Communication Bluetooth, USB

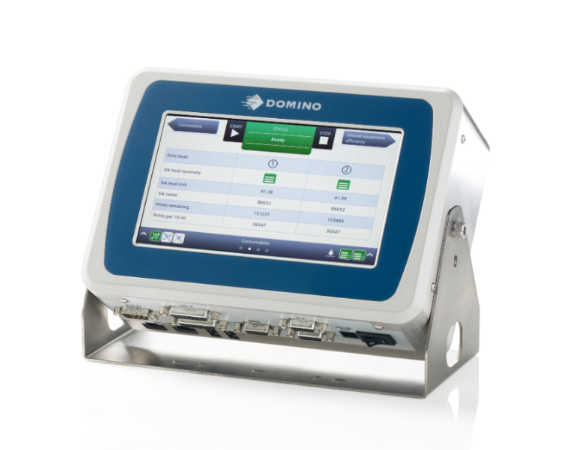

Gx150i

The all-rounder for thermal inkjet coding at speed in graphic quality

Text, Barcodes and Graphic Coding Yes
High-Speed Serialisation Yes
Max Print Height 25.4mm
Line Speed For varying and constant line speeds, max 300m/min
Print Heads Per Controller Up to 2 print heads for increased message height or individual printing on 2 different print positions
Controller Dimensions 75mm x 224mm x 156.5mm Weight: 1.55kg
Print Head Dimensions Height 152mm x Width 50.9mm x Depth: 8.5mm Weight: 0.22kg
User Interface QuickStep via 7" touch screen or customer HMI
Domino Cloud for Remote Monitoring & Diagnostics Yes
Inks for Porous and Non-Porous Materials Yes
Communication Ethernet / Dynamark protocol, EDC (serial, TCP, USB)

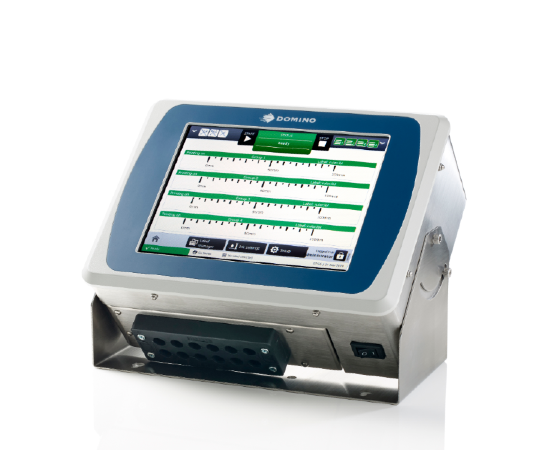

Gx350i

The ideal choice for item-level serialisation and fast data transfer, controlling up to 4 printheads

Text, Barcodes and Graphic Coding Yes
High-Speed Serialisation Yes
Max Print Height 50.8mm
Line Speed For varying and constant line speeds, max 300m/min
Print Heads Per Controller Up to 4 print heads for increased message height or individual printing on up to 4 different print positions
Controller Dimensions 123.9mm x 322.4mm x 250.7mm Weight: 6.4kg
Print Head Dimensions Height 152mm x Width 50.9mm x Depth: 8.5mm Weight: 0.22kg
User Interface QuickStep via 10" touch screen or customer HMI
Domino Cloud for Remote Monitoring & Diagnostics Yes
Inks for Porous and Non-Porous Materials Yes
Communication Ethernet / Dynamark protocol, EDC (serial, TCP, USB) optional: EtherCAT protocol

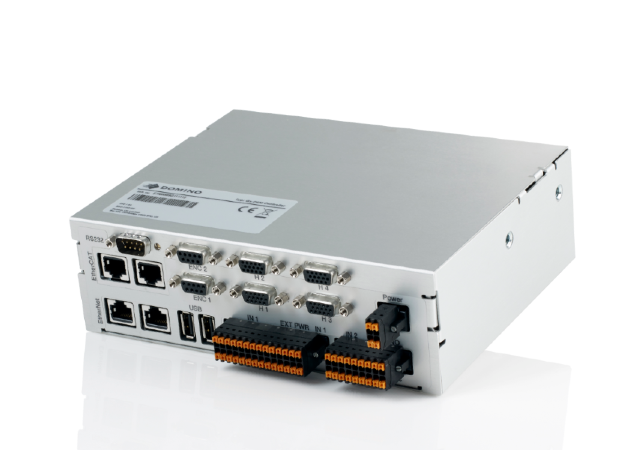

Gx-OEM

The specialist for complete integration into production machinery

Text, Barcodes and Graphic Coding Yes
High-Speed Serialisation Yes
Max Print Height 50.8mm
Line Speed For varying and constant line speeds, max 300m/min
Print Heads Per Controller Up to 4 print heads for increased message height or individual printing on up to 4 different print positions
Controller Dimensions 64mm x 200mm x159.2mm Weight: 0.692kg
Print Head Dimensions Height 152mm x Width 50.9mm x Depth: 8.5mm Weight: 0.22kg
User Interface QuickStep via customer HMI
Domino Cloud for Remote Monitoring & Diagnostics Yes
Inks for Porous and Non-Porous Materials Yes
Communication Ethernet / Dynamark protocol, EDC (serial, TCP, USB) optional: EtherCAT protocol

Why choose Domino?

High Resolution at the Highest Speeds
Perfect for high volume, high speed printing in demanding environments

Small Footprint
Easy printhead integration and remote controller mounting

Efficient Ink System
The changeable print cartridge is clean and efficient

Improved Line Efficiency
No regular essential maintenance means greater efficiency

Range of Inks
Our portfolio of water and ethanol based inks can match your diverse substrate printing requirements

Simple to Use
Easy operation for creating simple to complex messages

Industry Applications

Food Icon Food
Industrial icon Industrial
Pharmaceutical icon Pharmaceutical

Discover more about Domino Gx-Series

Domino Cloud

Connected devices and real-time performance data

Domino Cloud is a central connection point between devices, allowing operators to use coding equipment as part of a singular intelligent factory operation. Connecting factory equipment to the Domino Cloud gives manufacturers 24/7 access to information on production line efficiencies, printer statuses and so much more. The Domino Cloud differs from traditional wide area networks (WAN), in that computing power and storage can flex in real time to the needs of the consumer, allowing for spikes in production and resource-intensive operations to be managed effectively.

A vast array of data on printer operation is collected in real time – from ink and makeup usage, to running performance, and wear and tear on components. The data is sent securely to the Domino Cloud where it can be accessed by the customer and our Helpdesk team to monitor printers remotely, diagnose faults, and flag potential issues early – before any downtime occurs.

Remote Monitoring, Diagnostics and Service Cover for your Continuous and Thermal Inkjet Printers

Protecting planned production time is essential - and so is flexibility in your service coverage. This is why our SafeGuard packages range from Cloud-free service coverage, through to Cloud-enabled packages featuring remote monitoring, OEE performance dashboards, 24/7 Help Desk support and more.
