Coding, Marking & Automated Labelling

Domino Vx-Series and V-Series Thermal Transfer Overprinting

Print real-time and variable data, machine-readable codes, text, graphics and logos onto flexible packaging films and labels

Thermal Transfer Overprinters

Cost-effective thermal transfer overprinting for flexible packaging

The Domino's Vx-Series and V-Series Thermal Transfer Overprinting (TTO) coders provide ultimate performance to code onto film, labels, or a range of other flexible packaging materials. Domino's TTO coders are the most advanced in the market when it comes to ribbon economy, speed and print size. The range provides the ideal coding method in bag forming machines, vertical form fill and seal, horizontal form fill and seal, and a variety of other host machines. The units are extremely versatile, making integration with existing host machines a simple process. These printers can be controlled by a host software system or operated individually as a standalone system.

  • Reduce waste and cost with 4 different ribbon saving modes - save up to 60% of the ribbon consumption!
  • Maximise production line efficiency with a comprehensive rage of services and software.

VIEW THE RANGE

Domino Vx-Series and V-Series Thermal Transfer Overprinting for Flexible Packaging



Vx150i

Coding on flexible packaging has never been easier

V230i

Thermal transfer overprinter for flow wrappers, baggers, and labellers

V320i

Speed, versatility, and efficiency

FEATURE COMPARISON

Domino Vx-150i

Domino V230i

Domino V320i

Printhead width 32mm and 53mm 32mm and 53mm 53mm and 128mm
Code print quality 300dpi 300dpi 300dpi
Maximum print speed 750mm/sec 750mm/sec 1400mm/sec
Maximum repeat rate 6 prints/sec 6 prints/sec 6 prints/sec
Maximum ribbon length (AR ribbon) 770m 770m 1600m
Compressed air required Not Required Not Required Required
Cassette-based ribbon loading Yes Yes Yes
QuickStep - simple user interface Yes Yes Yes
PC label design software included Yes Yes Yes
Web browser capability for complete host machine integration Yes Yes Yes
Simple bracket conversion kits Yes Yes No
Performance packs (optional) Enhanced promotional coding pack, Dynamark serialisation pack, Advanced security pack Promotional coding pack None
Optional interface TouchPad; 7inch touchscreen TouchPad; 5.7inch touchscreen TouchPad; 5.7inch or 10.4inch touchscreen
  View Brochure View Brochure View Brochure



Vx150i

Coding on flexible packaging has never been easier

Maximum Code Width 53mm
Code Print Quality 300dpi
Maximum Print Speed 770m
Maximum Repeat Rate 6 prints/sec
Maximum Ribbon Length (AR ribbon) 770m
Compressed Air Required Not required
Cassette Ribbon Loading No
QuickStep - Simple User Interface Yes
PC Label Design Software Included Yes
Web Browser Capability for Complete Host Machine Integration Yes
Simple Bracket Conversion Kits Yes
Performance packs (optional) Enhanced promotional coding pack, Dynamark serialisation pack, Advanced security pack
Optional interface TouchPad; 7inch touchscree

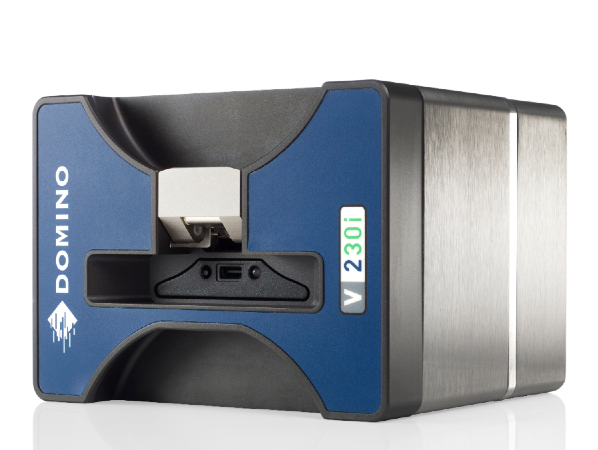

V230i

Thermal transfer overprinter for flow wrappers, baggers, and labellers



Maximum Code Width 53mm
Code Print Quality 300dpi
Maximum Print Speed 750mm/s
Maximum Repeat Rate 6 prints/sec
Maximum Ribbon Length (AR Ribbon) 770m
Compressed Air Required Not required
Cassette Ribbon Loading Yes
QuickStep - Simple User Interface Yes
PC Label Design Software Included Yes
Web Browser Capability for Complete Host Machine Integration Yes
Simple Bracket Conversion Kits Yes
Performance packs (optional) Promotional coding pack
Optional interface TouchPad; 5.7inch touchscreen

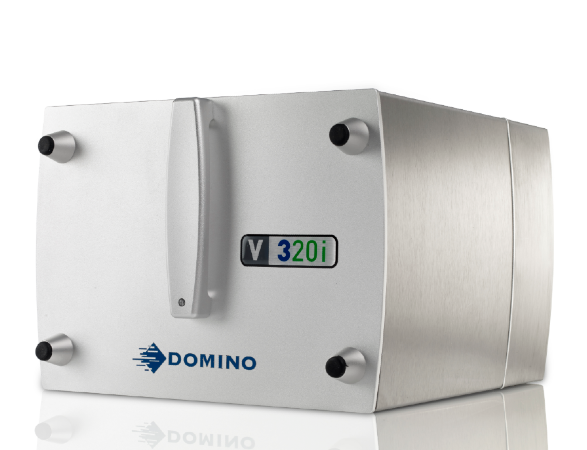

V320i

Speed, versatility, and efficiency

Maximum Code Width 128mm
Code Print Quality 300dpi
Maximum Print Speed 1400mm/s
Maximum Repeat Rate 6 prints/s
Maximum Ribbon Length (AR Ribbon) 1600m
Compressed Air Required Required
Cassette Ribbon Loading Yes
QuickStep - Simple User Interface Yes
PC Label Design Software Included Yes
Web Browser Capability for Complete Host Machine Integration Yes
Simple Bracket Conversion Kits No
Performance packs (optional) None
Optional interface TouchPad; 5.7inch or 10.4inch touchscreen

Why choose Domino?

Unique Domino Ribbon
A wide range of ribbons offering greater print quality, lower downtime and regulatory compliance for peace of mind

Simple Installation and Replacement
Compact size so existing brackets can be used, no compressed air, compatible with other systems

No Dedicated Controller
Operate more than one printer with your controller or even use your PC

Reliability You Can Trust
The i-Tech 'Dancing Arms' system virtually eliminates ribbon breaks

Versatile
Quick conversion between intermittent and continuous modes plus a wide range of mounting brackets to suit all packaging machines

Easy To Use
Domino's QuickStep user interface simplifies operation and allows message creation without the need for a PC

Industry Applications

Food Icon Food
Beverage Icon Beverage
Industrial icon Industrial
Pharmaceutical icon Pharmaceutical

Discover more about Domino Vx-Series

CUSTOMER SUCCESS STORIES

We’ve helped 5,000+ companies innovate & improve operational efficiency

When New South Wales Davies Chocolates faced reliability issues with their printing equipment, insignia provided a versatile thermal printing solution that would help improve traceability and subsequently reduce operational costs.

Lewis & Son’s product range required a more flexible approach to in-house label printing. Introducing a thermal transfer overprint label for a range of products enabled Lewis & Son improved efficiency and achieved cost savings.
